Version: 1.0
Features:
- MCU: ARM Cortex-M0+ STM32G0B1CBT6 64MHz whit FDCAN bus
- Stepper Dirver:
- TMC2209 Version: Onboard TMC2209 in UART mode, UART address: 00, Rsense: 0.11R
- TMC2240 Version: Onboard TMC2240 in SPI mode
- Onboard Accelerometer Sensor: ADXL345
- Onboard Temperature IC: Max31865 Select 2 / 4 lines PT100 / PT1000 by DIP switch
- Input Voltage: DC12V-DC24V 9A
- Logic Voltage: DC 3.3V
- Heating Interface: Hotend (E0), maximum output current: 5A
- Fan Interfaces:
- 2 x CNC fans (FAN1, FAN2)
- 1 x 4-wire fan (4W_FAN)
- Maximum Output Current of Fan Interface: 1A, Peak Value 1.5A
- Expansion Interfaces: EndStop, Bltouch, Proximity(NPN & PNP), RGB, PT100/PT1000, USB, CAN, SPI
- Temperature Sensor Interface Optional: 1 Channel 100K NTC or PT1000(TH0), 1 Channel PT100/PT1000 (Max31865)
- USB Communication Interface: USB-Type-C
- DC 5V Maximum Output Current: 1A
- Firmware support:
- Only supports Klipper at the present

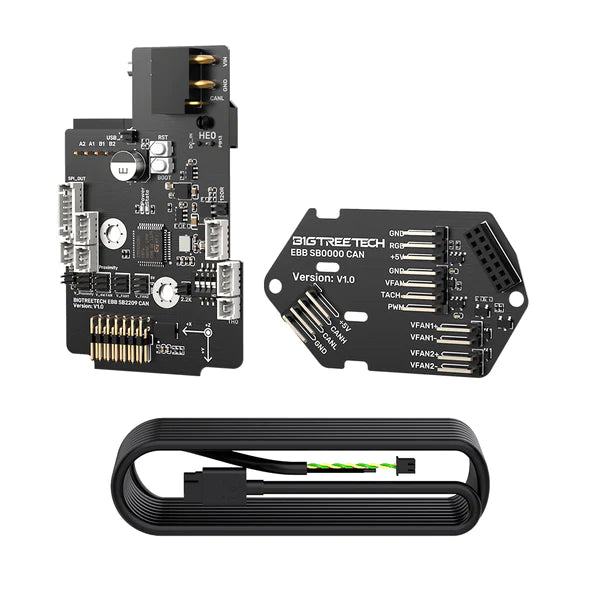

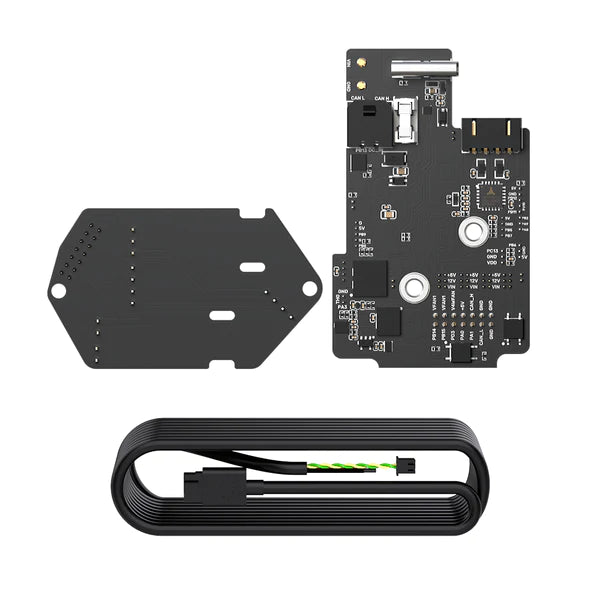

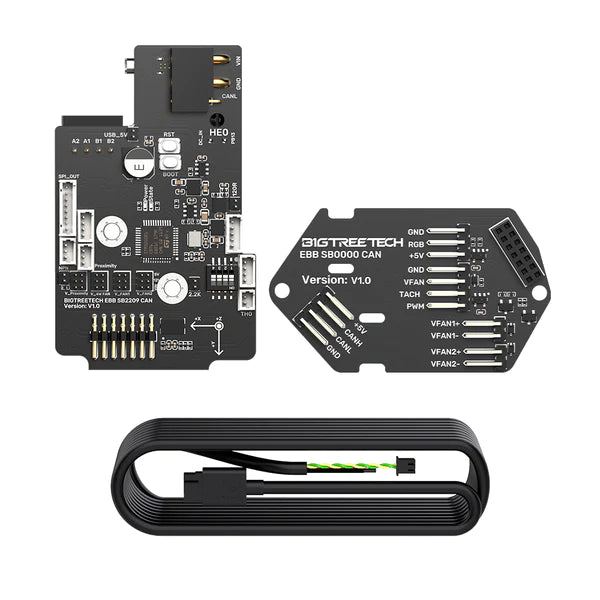

Includes:
- Housings and crimp terminals for all connectors
- Combined CAB bus/power cable
Please visit GitHub page for more information
