Electrical Specification

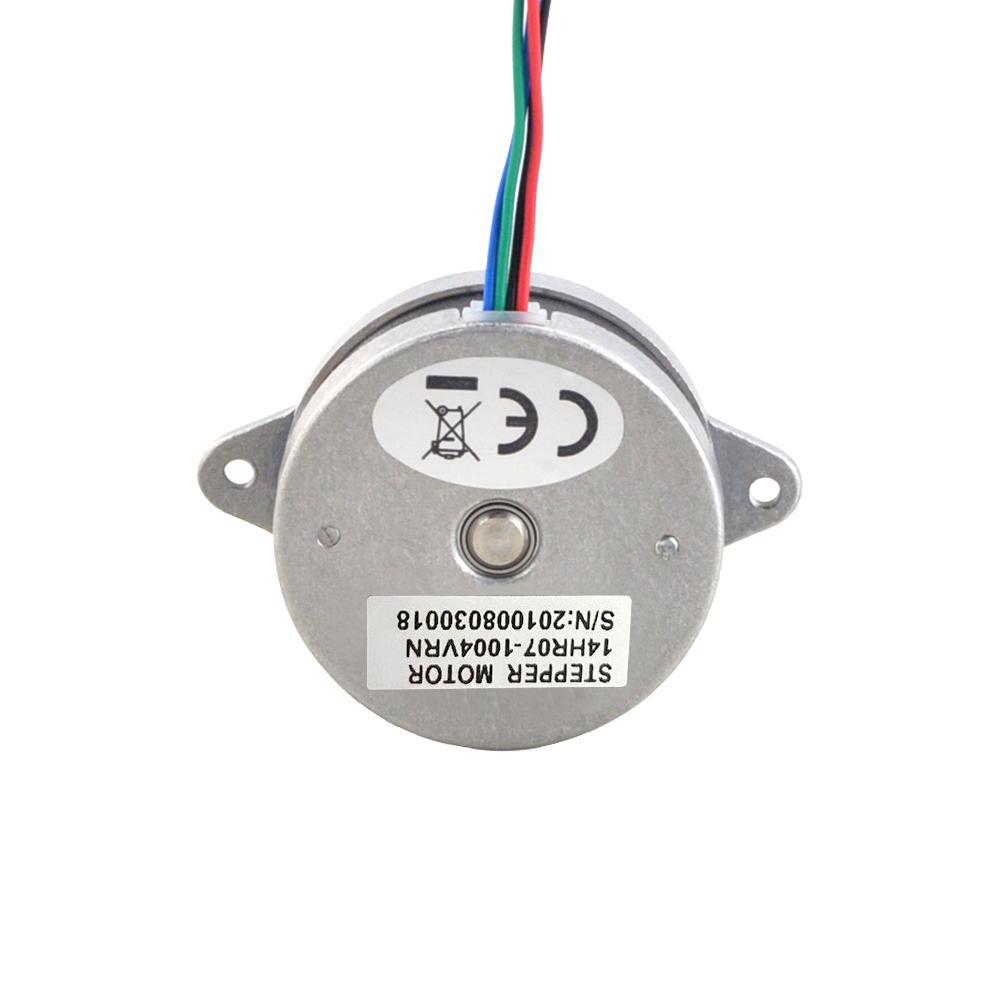

- Manufacturer Part Number: 14HR07-1004VRN
- Motor Type: Bipolar Stepper
- Step Angle: 0.9 deg
- Holding Torque: 9 Ncm(12.75 oz.in)
- Rated Current/phase: 1.0 A
- Phase Resistance: 3.9 ohms
- Inductance: 2.0 mH ± 20%(1KHz)
Physical Specifications
- Frame Size: 36.5 x 36.5 mm
- Body Length: 17.5 mm
- Shaft Diameter: Φ2.5 mm
- Shaft Length: 4 mm
- Number of Leads: 4
- Lead Length: 500 mm
- Weight: 0.08 kg
