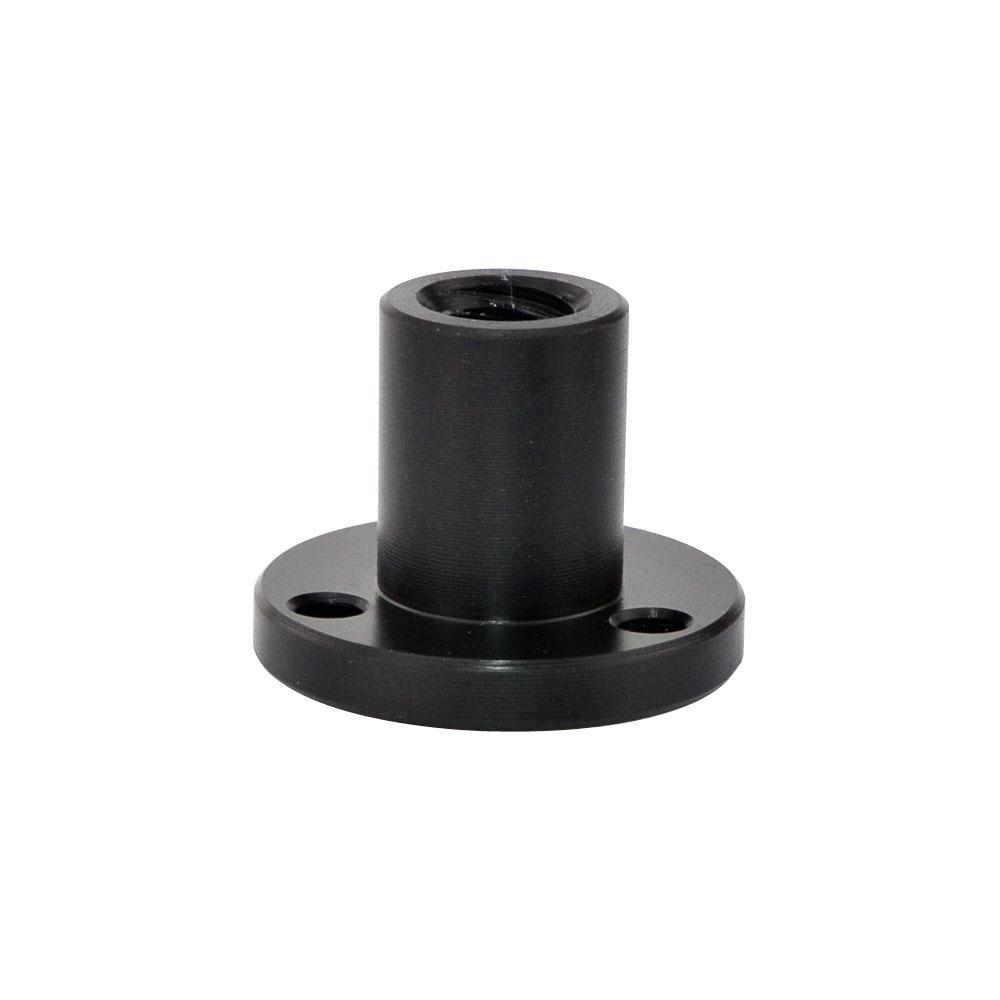

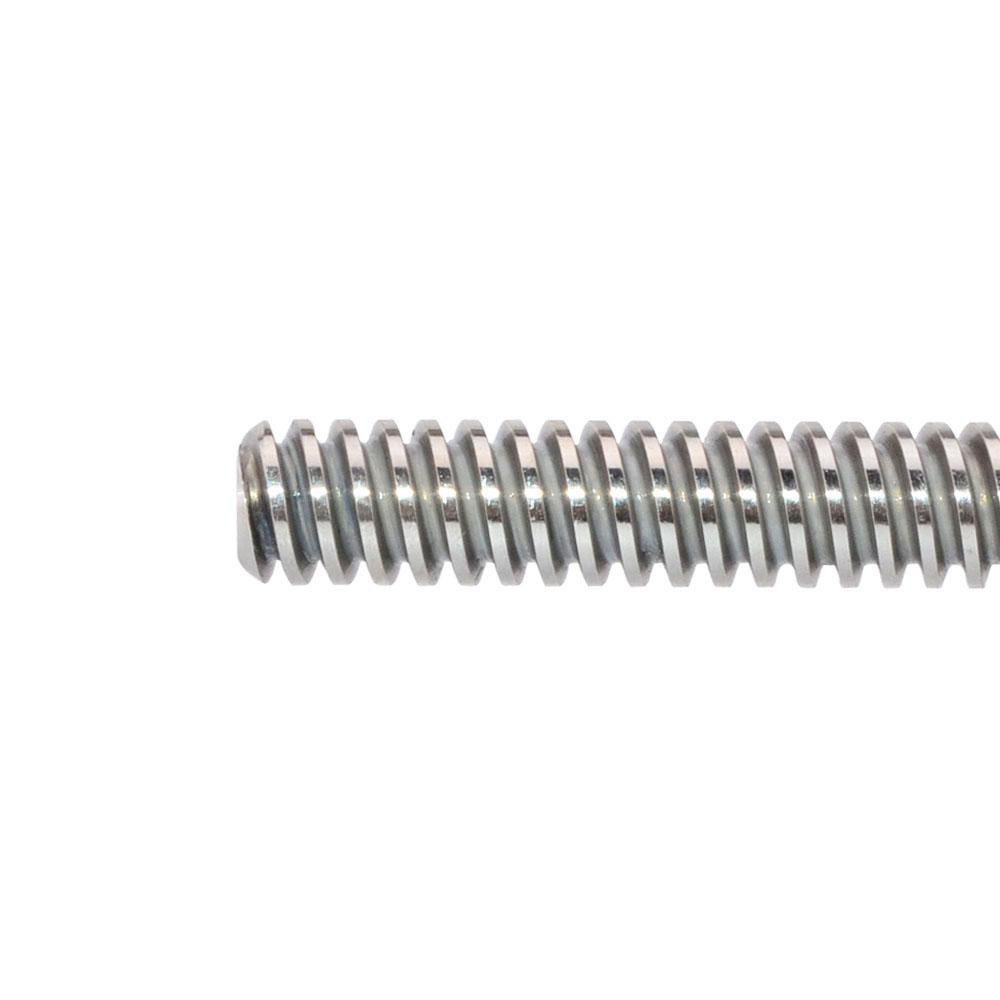

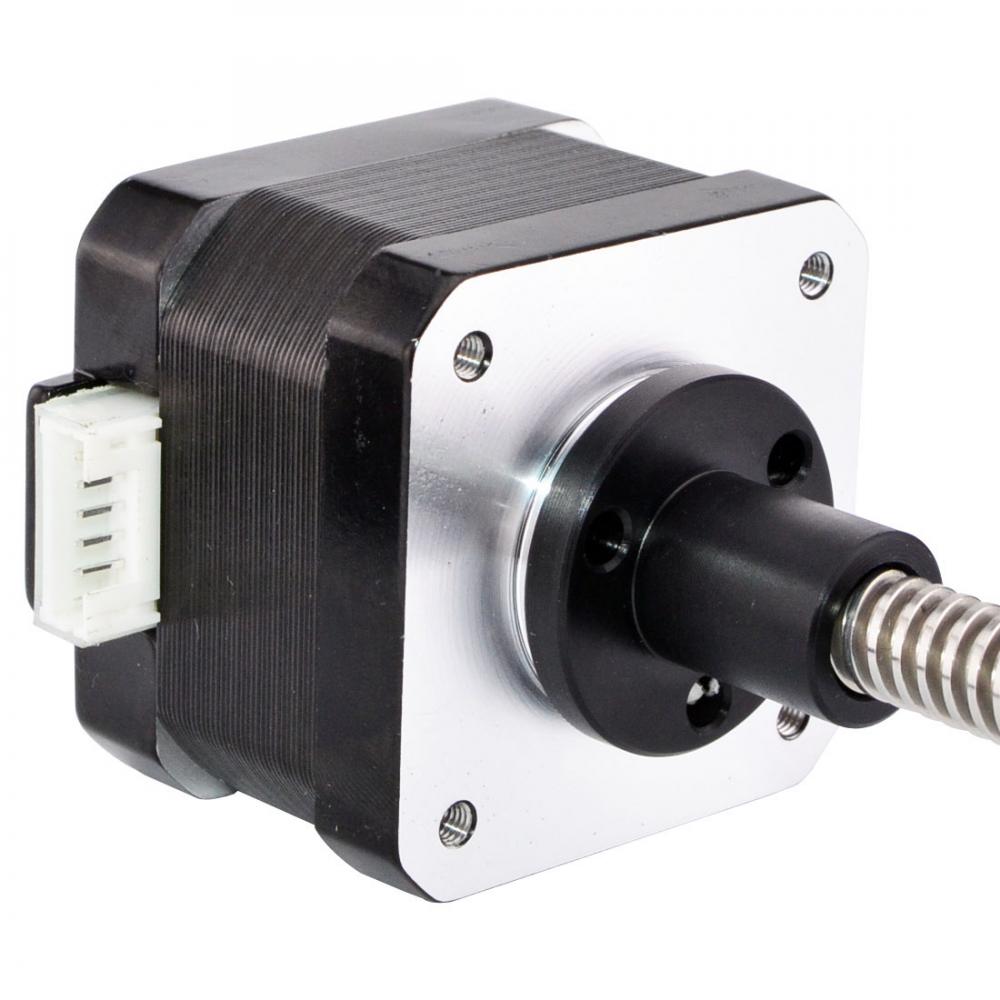

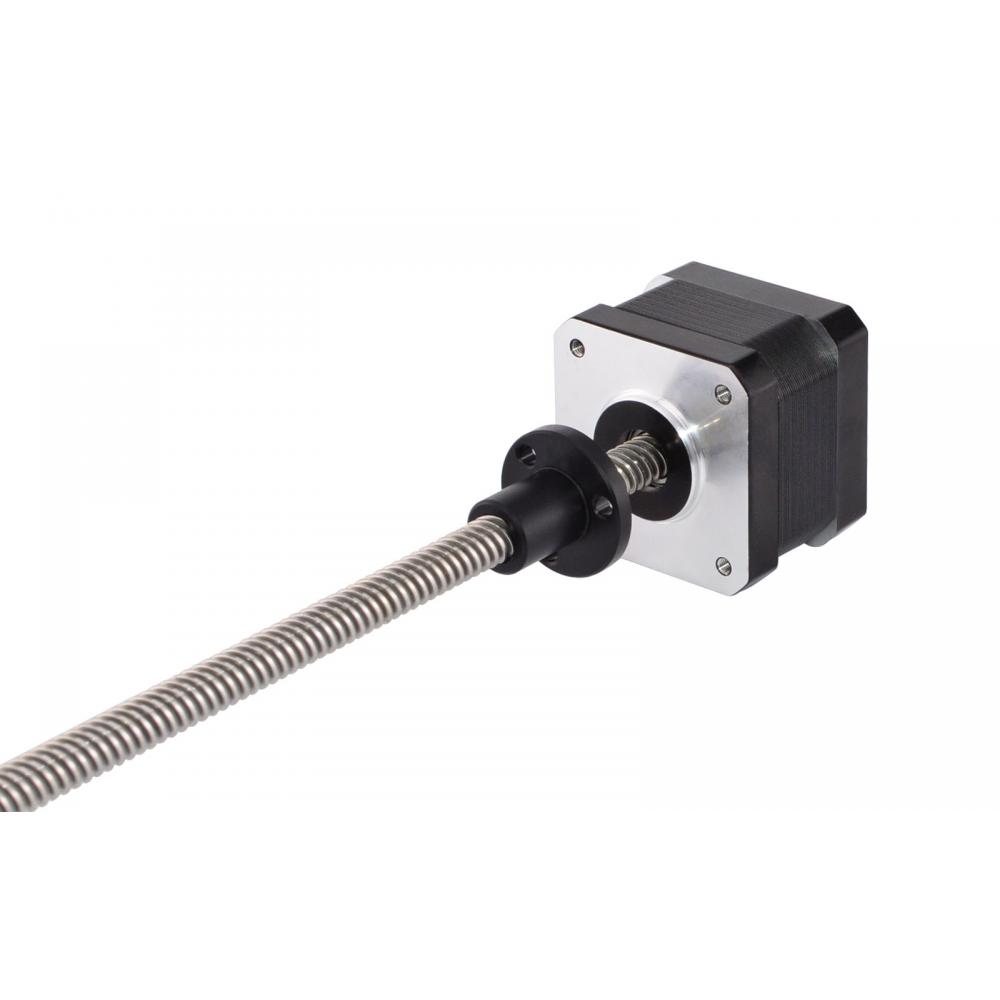

This model is economy linear stepper motor which named Nema 17 external linear actuator, the motor part is 34mm 1.8 degree 0.4A Nema 17 stepper motor. It was integrated with 200mm Tr8x8 threaded rod and a POM screw nut move along the threaded rod.
Electrical Specification
- Manufacturer Part Number: 17LS13-0404E-200G
- Motor Type: External Linear Stepper
- Step Angle: 1.8 deg
- Holding Torque: 26Ncm(36.8oz.in)
- Rated Current/phase: 0.4A
- Phase Resistance: 30ohms
- Voltage: 12V
- Inductance: 37mH ± 20%(1KHz)
Physical Specification
- Frame Size: 42 x 42mm
- Body Length: 34mm
- Lead Screw Length: 200mm（7.874"）
- Lead Screw Diameter: Φ8mm（0.315"）
- Lead /Step:0.04mm(0.0015748" )
- Lead/Revolution: 8mm（0.315"）

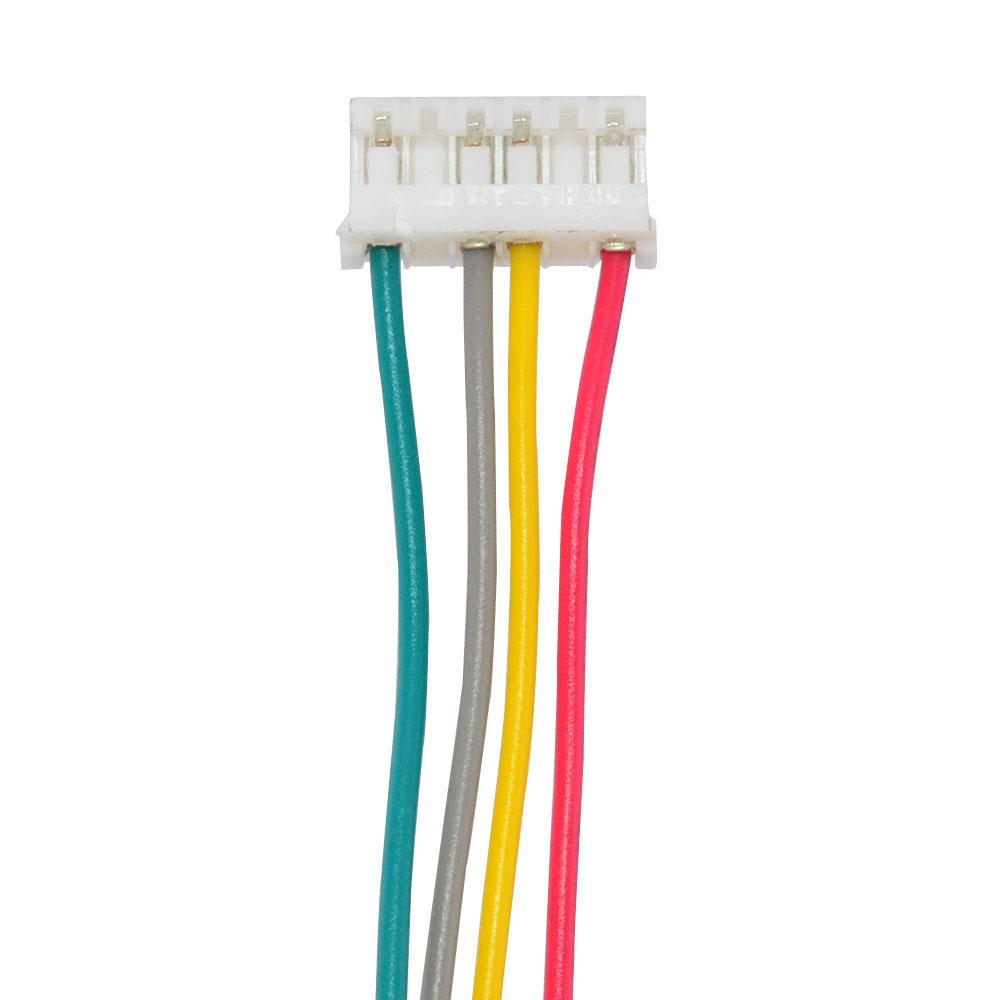

- Number of Leads: 4
- Lead Length: 400mm
- Weight : 400g
