Motion Parts Set for VORON 2.4
Compatible with VORON 2.4 r1/r2
This is Revision A: FUSHI bearings, Gates open belts, generic belt loops.
Included parts:
| Part description | Qty | Notes |
|---|---|---|
| Motion | ||
| GT2 20T Pulley (5mm bore, 6mm wide) | 3 | |
| GT2 16T Pulley (5mm bore, 6mm wide) | 4 | |
| GT2 20T Pulley (5mm bore, 9mm wide) | 4 | |
| GT2 20T Pulley (5mm bore, 6mm wide) | 3 | |
| GT2 16T Pulley (5mm bore, 6mm wide) | 4 | |
| GT2 20T Pulley (5mm bore, 9mm wide) | 4 | |
| GT2 80T Pulley (5mm bore, 6mm wide) | 4 | |
| GT2 80T Pulley (5mm bore, 6mm wide) | 4 | |
| F695 Bearing | 20 | FUSHI |
| 625 Bearing | 12 | FUSHI |
| GT2 20T Toothed Idler (5mm ID, 6mm wide) | 2 | |
| GT2 20T Toothed Idler (5mm ID, 9mm wide) | 4 | |
| GT2 20T Toothed Idler (5mm ID, 6mm wide) | 2 | |
| GT2 20T Toothed Idler (5mm ID, 9mm wide) | 4 | |
| GT2 Belt Loop, 6mm wide, 188mm | 4 | Generic |
| 5x60mm Shaft | 4 | With flats ground |
| 5x30mm Shaft | 1 | Stainless steel shaft for Z-Probe |
| GT2 Open Belt, 9mm wide, meters | 5 | Gates |
| GT2 Open Belt, 6mm wide, meters | 5 | Gates |

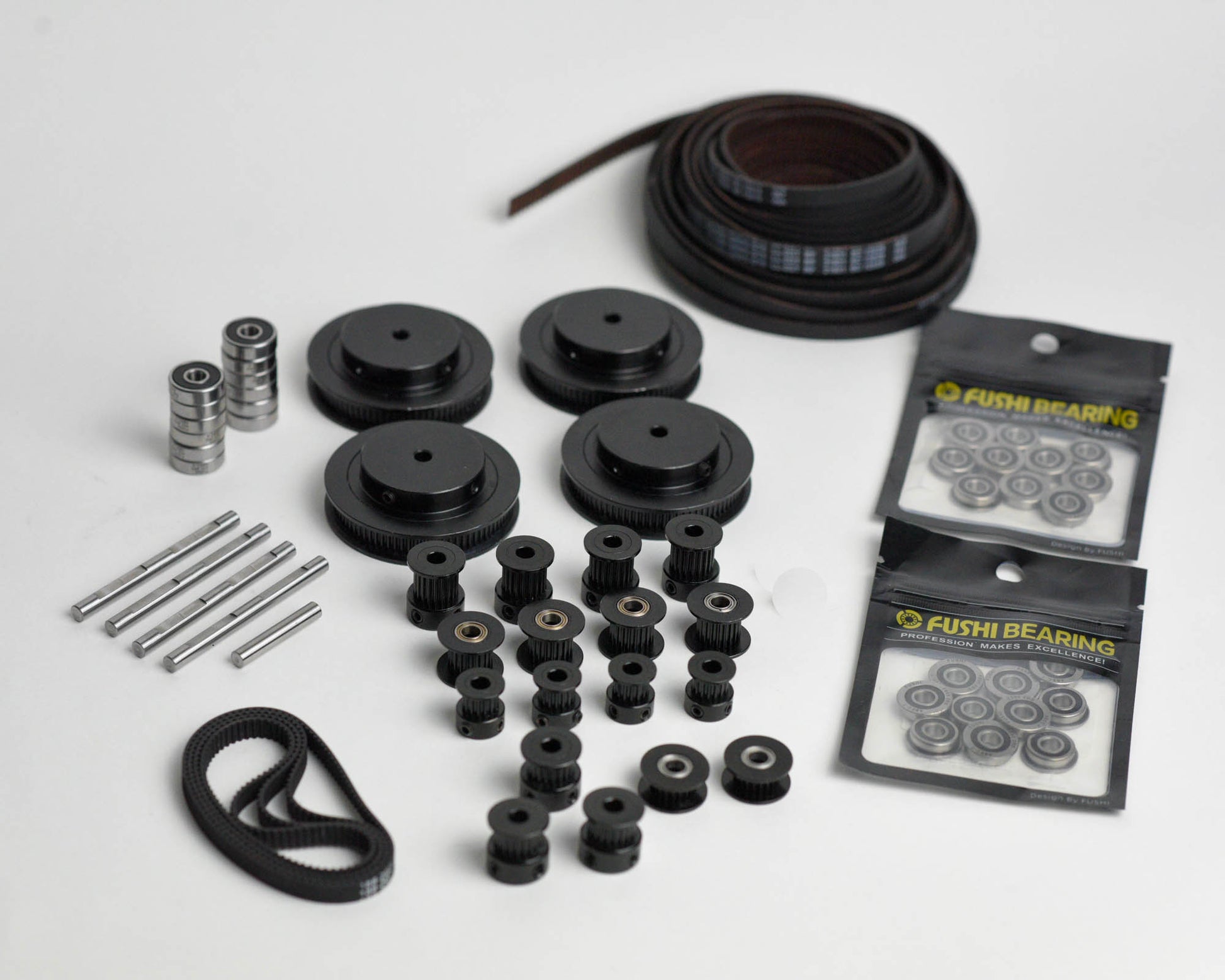

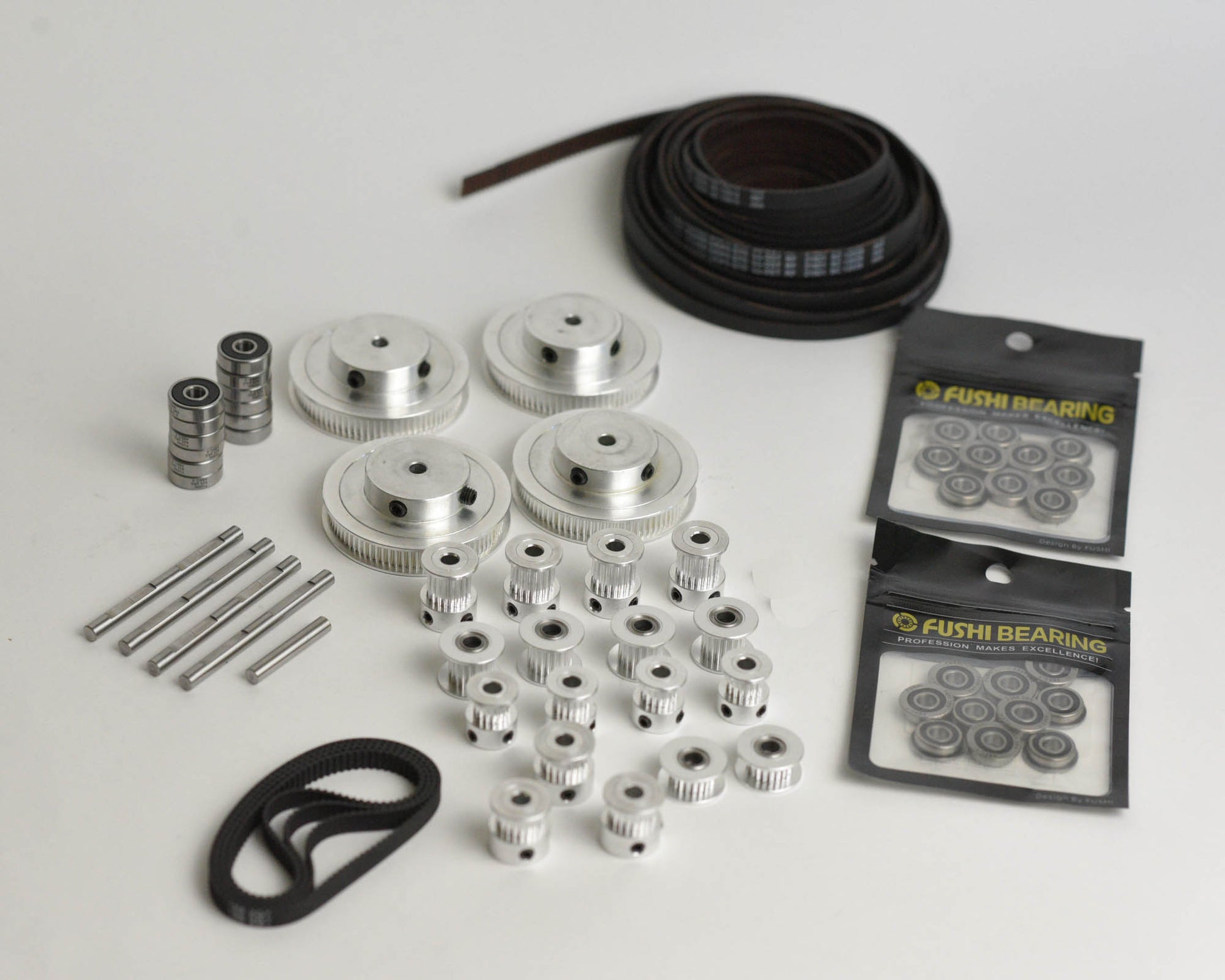

Pictures are for example of packaging only, please refer to the BOM table for an actual content info.
This is not a plug-and-pay kind of a kit. It is intended for a very DIY-inclined maker.
At our discretion, we will provide reasonable quantities of extra parts on demand, free of charge, for up to 60 days after the kit purchase. Do not hesitate to contact us if you lost a screw or broke a crimp connector.
We are doing our best to provide all parts in the quantities listed, but mistakes can happen. In case if some items are miscounted, please contact us within 60 days after the purchase and we’ll ship missing items to you free of charge.
Unused and fully intact kit in its original condition can be returned up to 30 days after the purchase.
