Core Electronic Parts Kit for VORON 2.4r2 3D Printer
Core kit excludes frequently customized items such as the controller board, stepper drivers, Raspberry PI, hot end. A selection of add-on items is available separately.
Included parts:
| Part description | Qty | Notes |
|---|---|---|
| Electronics | ||
| Omron D2F-01L MicroSwitch | 2 | 100mA 30V with lever for X and Y stops |
| Omron D2F-5 MicroSwitch | 1 | 250V 5A without lever for Z stop |
| 40x40x20mm Centrifugal Fan (24V) | 1 | |
| 40x40x10mm Axial Fan (24V) | 1 | |
| 60x60x20 Axial Fan (24V) | 3 | |
| ZF Rocker Switch DPST 16A | 1 | |
| IEC320-C14 Power Inlet (not filtered) | 1 | Compatible module with no filter is used |
| 8A Fuse 250V 5x20mm | 1 | |
| Flat Head Self Tapping Screw #4 x 3/8" | 2 | |

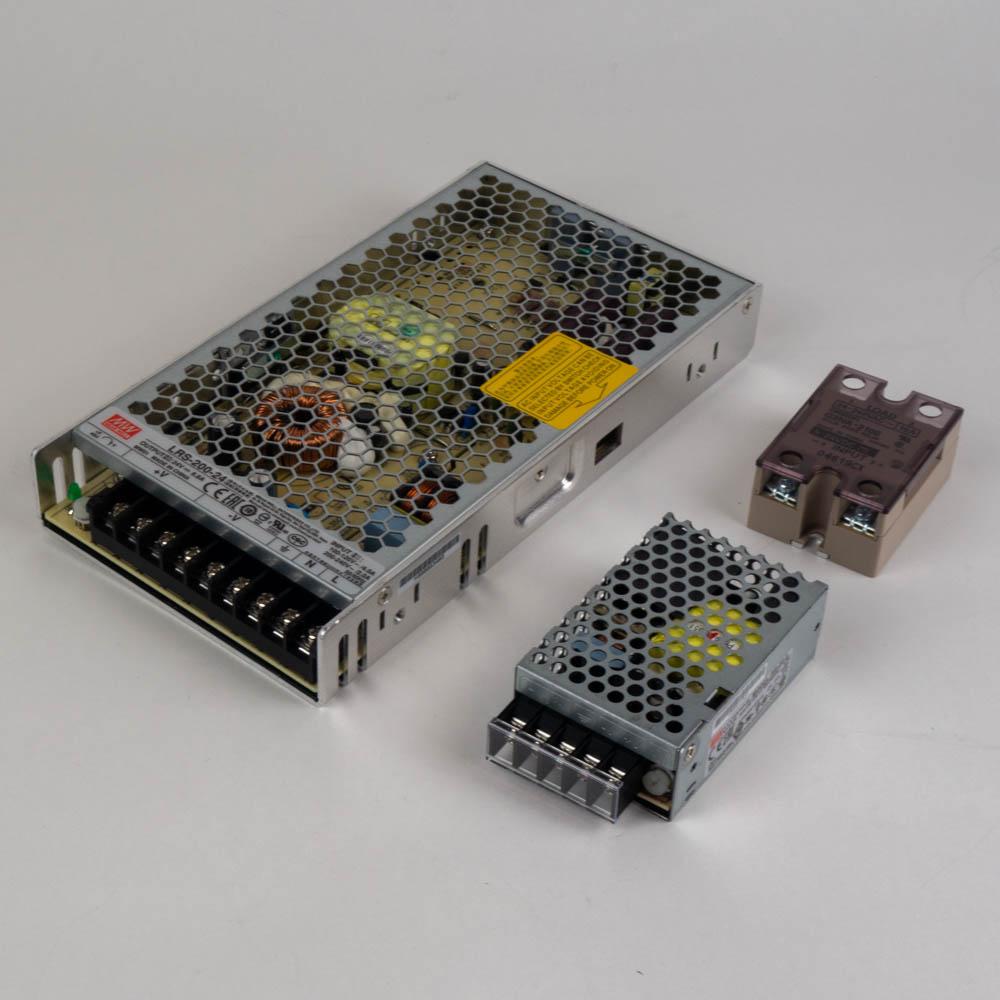

| Mean Well LRS-200-24 PSU | 1 | |
| Mean Well RS-25-5 PSU | 1 | |
| Omron G3A-210B-DC5-24 SSR | 1 | |
| BAT85 Diode | 1 | |
| C13 Power Cord | 1 | |
| Thermal Fuse Set | 1 | Includes: 125°C 15A 250V Fuse, ring crimp terminal, connector, screws |
| Misc | ||
| Tesa Wire Loom Harness Tape | 1 | |
| Cables | ||
| Nylon Cable Ties 4" | 50 | |
| Spade Crimp Terminal | 30 | |
| Insulated QuickConnect Crimp Receptacle | 10 | |
| 20AWG Flexible Silicone wire - 7m spool | 1 | |
| 24AWG Flexible Silicone wire - 9m spool | 7 | |
| 18AWG Wire set | 1 | 4ft each White/Green/Red; 8ft Black |
| Wago 221-415 5-way Splices | 3 | |
| JST XHP-2 Housing | 6 | |
| JST XHP-3 Housing | 6 | |
| JST XHP-4 Housing | 7 | |
| JST Crimp Pin SXH-001T-P0.6 | 50 | |
| MicroFit3 Male Pin | 50 | |
| MicroFit3 Connector Plug 4 Position | 5 | |
| MicroFit3 Connector Plug 3 Position | 1 | |
| MicroFit3 Connector Plug 2 Position | 6 | |
| MicroFit3 Female Pin | 50 | |
| MicroFit3 Connector Receptacle 4 Position | 5 | |
| MicroFit3 Connector Receptacle 3 Position | 1 | |
| MicroFit3 Connector Receptacle 2 Position | 6 | |
| MLX Power Receptacle 3 Position | 1 | |
| MLX Power Plug 3 Position | 1 | |
| MLX Male Pin | 6 | |
| MLX Female Pin | 6 | |
Core kit option does not include Controller Board; Stepper Drivers; Display; Raspberry Pi; SD Card; Hot end; Inductive probe

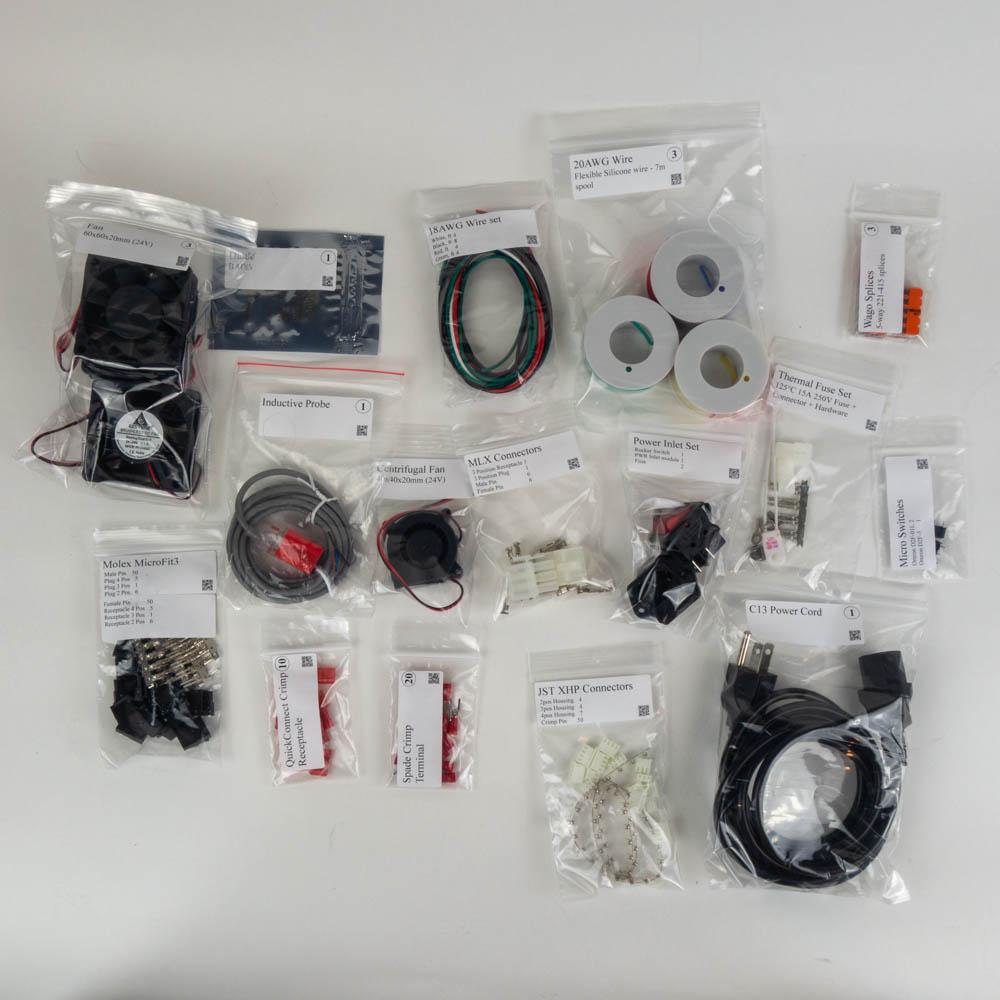

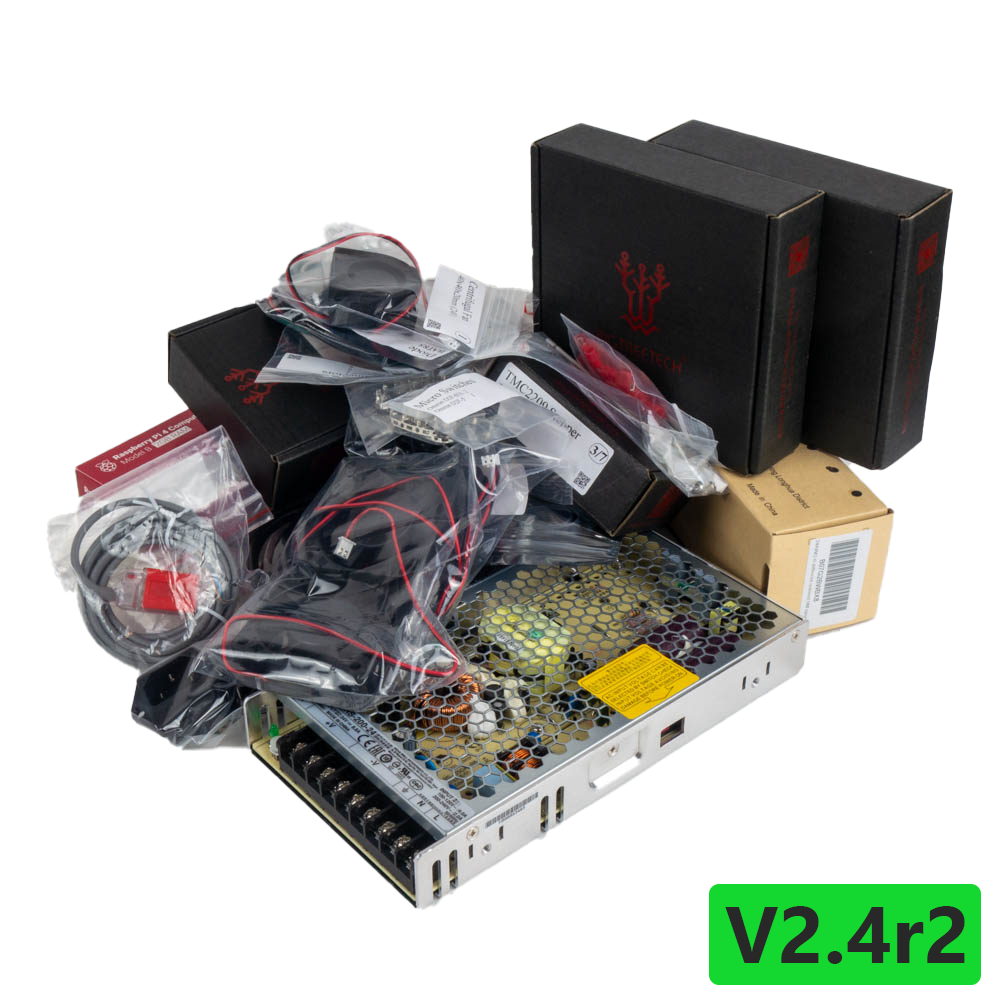

Pictures are for example of packaging only, please refer to the BOM table for an actual content info.
Cable chains are not included in this kit and are available separately.
Power switch and inlet module are compatible with filtered mains option of the printed inlet panel.
This is not a plug-and-pay kind of a kit. It is intended for a very DIY-inclined maker.
At our discretion, we will provide reasonable quantities of extra parts on demand, free of charge, for up to 60 days after the kit purchase. Do not hesitate to contact us if you lost a screw or broke a crimp connector.
We are doing our best to provide all parts in the quantities listed, but mistakes can happen. In case if some items are miscounted, please contact us within 60 days after the purchase and we’ll ship missing items to you free of charge.
Unused and fully intact kit in its original condition can be returned up to 30 days after the purchase.
