Mechanical parts kit for VORON 2.4r2 3d printer
Included parts:
| Part description | Qty | Notes |
|---|---|---|
| Fasteners | ||
| M5x40 SHCS | 22 | |
| M5x30 BHCS | 22 | |
| M5x10 BHCS | 35 | |
| M5x16 BHCS | 35 | |
| M5 Hexnut | 16 | |
| M5 T-nut HNTAJ5-5 | 68 | |
| M5 1mm Spacer | 42 | |
| M4x6 BHCS | 7 | |
| M3x40 SHCS | 30 | |
| M3x30 SHCS | 25 | |
| M3x20 SHCS | 22 | |
| M3x16 SHCS | 20 | |
| M3x12 SHCS | 41 | |
| M3x10 FHCS | 4 | |
| M3x8 SHCS | 187 | |
| M3x6 BHCS | 11 | |
| M3x6 FHCS | 8 | |
| M3 Hexnut | 6 | |
| M3 T-nut HNTAJ5-3 | 103 | |
| M3 Hammer Head T-nuts | 60 | |
| M3 Washer | 3 | |
| M3 Heat-set Threaded Insert (5x4mm) | 120 | |
| M2x10 Self-tapping Screw | 16 | |
| Motion | ||
| GT2 20T Pulley (5mm bore, 6mm wide) | 3 | |
| GT2 16T Pulley (5mm bore, 6mm wide) | 4 | |
| GT2 20T Pulley (5mm bore, 9mm wide) | 4 | |
| GT2 80T Pulley (5mm bore, 6mm wide) | 4 | |
| F695 Bearing | 20 | |
| 625 Bearing | 12 | |
| GT2 20T Toothed Idler (5mm ID, 6mm wide) | 2 | |
| GT2 20T Toothed Idler (5mm ID, 9mm wide) | 4 | |
| GT2 Belt Loop, 6mm wide, 188mm | 4 | |
| 5x60mm Shaft | 4 | With flats ground |
| 5x30mm Shaft | 1 | Stainless steel shaft for Z-Probe |
| BMG Type Extruder Components Kit | 1 | Clone |
| GT2 Open Belt, 9mm wide, meters | 5 | |
| GT2 Open Belt, 6mm wide, meters | 5 | |
| Misc | ||
| Fume Extractor Carbon Filter Element | 1 | |
| Rubber Foot | 4 | |
| M5x12 BHCS | 4 | |
| 3M VHB Tape | 1 | |
| Single Sided Foam Tape 1mm Thick, 5m roll | 1 | |
| Single Sided Foam Tape 3mm Thick, 4m roll | 1 | |
| 6x3mm Neodimium Magnet | 8 | |
| PTFE Tube (4mm OD 3mm ID), meters | 1 | |
| PTFE Tube (4mm OD 2mm ID), meters | 0.3 | |
| 4mm Bowden Coupler | 1 | |

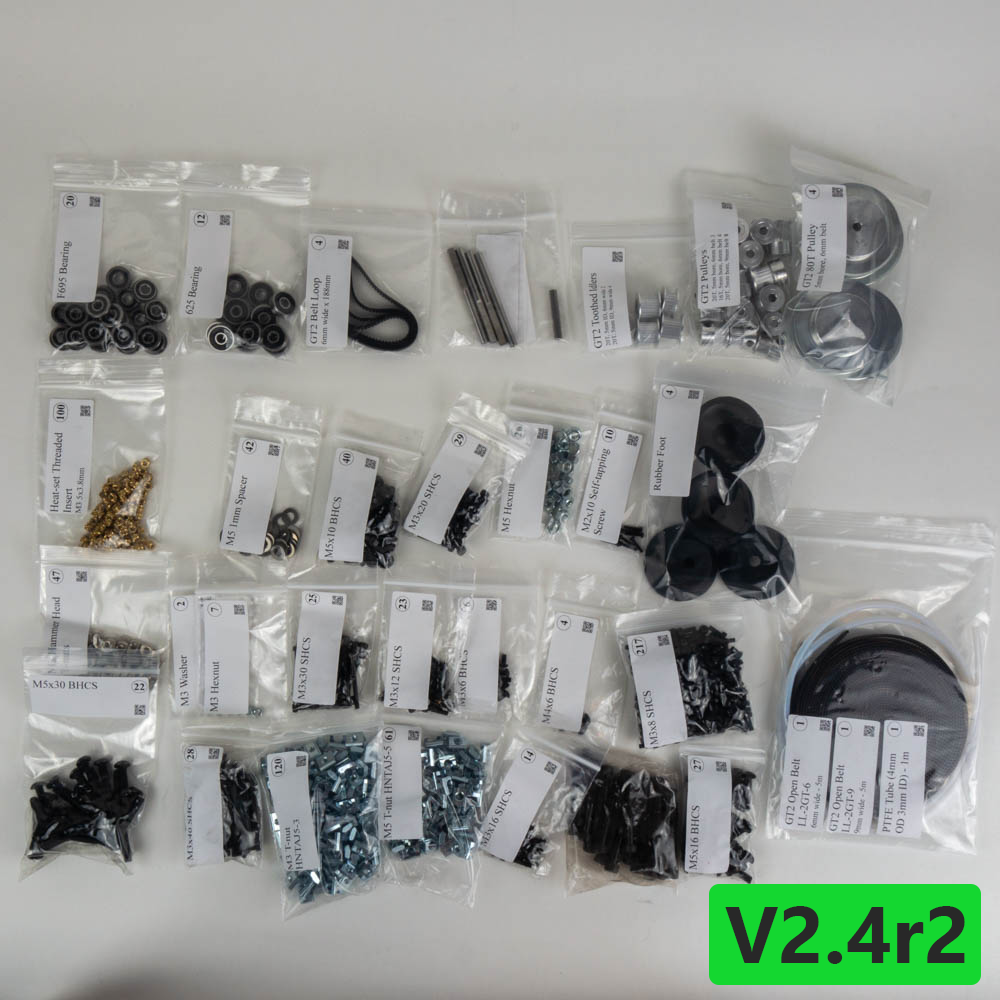

Pictures are for example of packaging only, please refer to the BOM table for an actual content info.
This is not a plug-and-pay kind of a kit. It is intended for a very DIY-inclined maker.
At our discretion, we will provide reasonable quantities of extra parts on demand, free of charge, for up to 60 days after the kit purchase. Do not hesitate to contact us if you lost a screw or broke a crimp connector.
We are doing our best to provide all parts in the quantities listed, but mistakes can happen. In case if some items are miscounted, please contact us within 60 days after the purchase and we’ll ship missing items to you free of charge.
Unused and fully intact kit in its original condition can be returned up to 30 days after the purchase.
