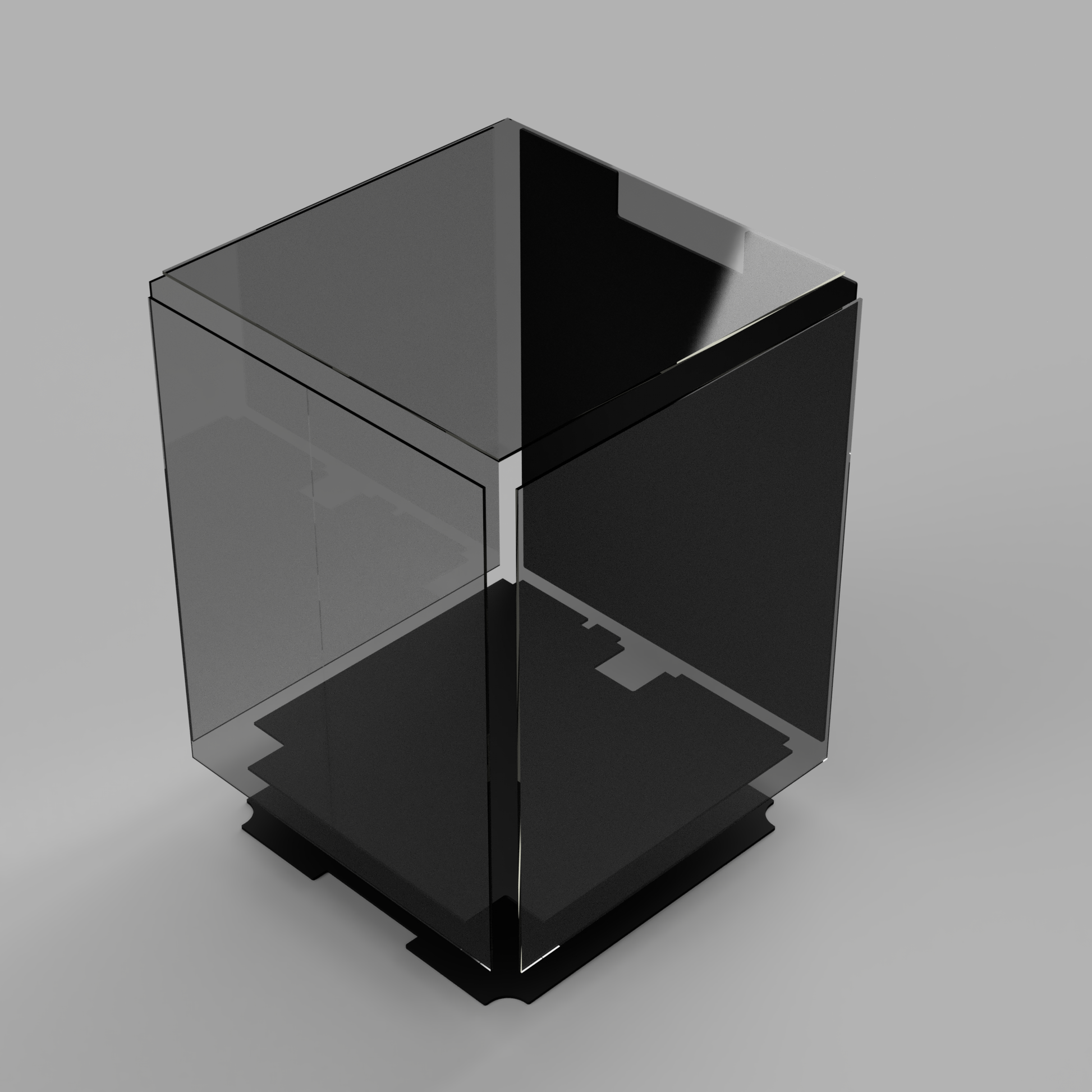

Set of plastic panels to build VORON Trident enclosure

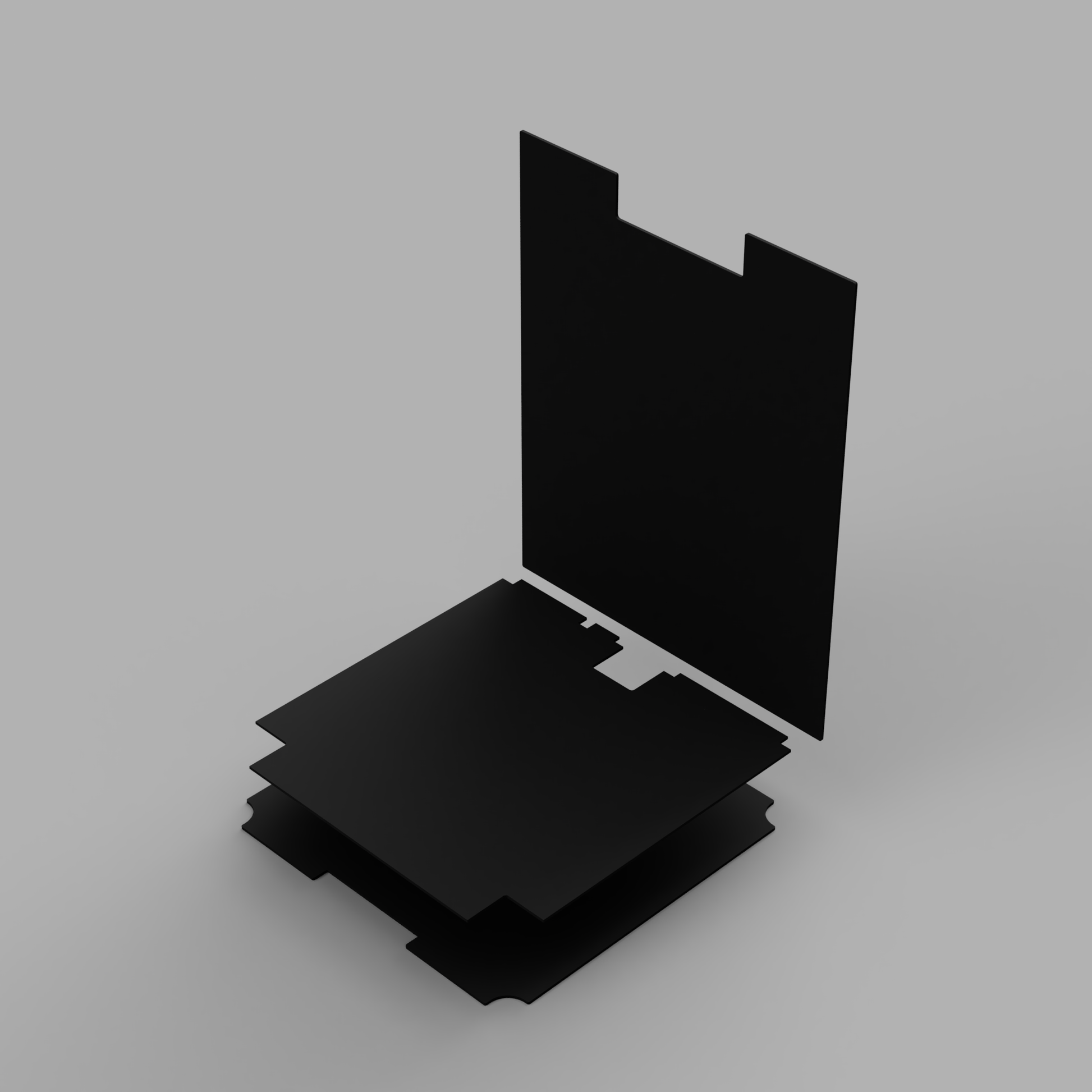

Deck, rear and bottom panels are CNC cut from black ABS (textured one side).

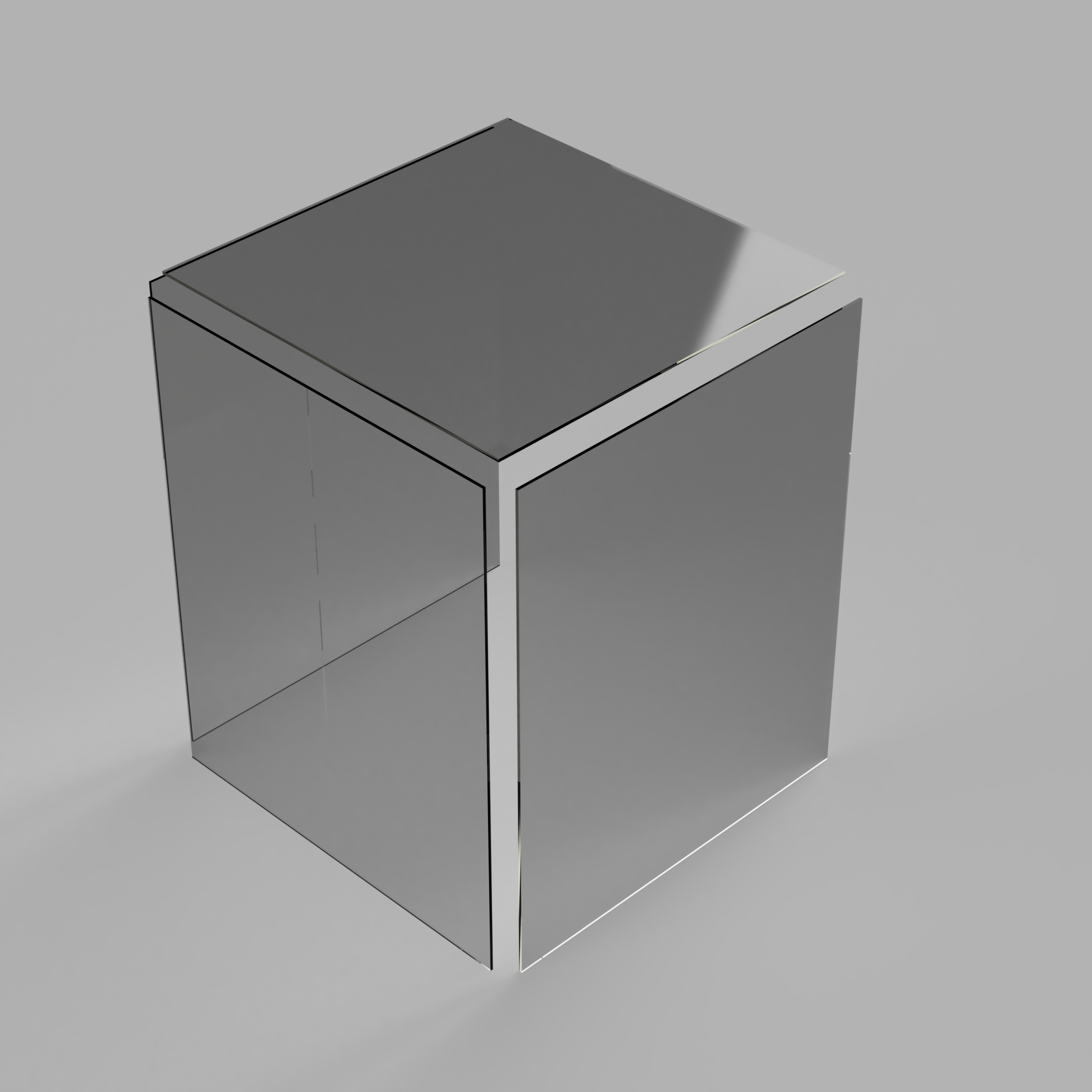

Side, front (split) and top panels are clear polycarbonate (saw-cut).
Included parts:
| Part description | Qty | Notes |
|---|---|---|
| Panels | ||
| Back panel - 250mm - ABS Black 3mm | 1 | |
| Deck panel - 250mm - ABS Black 3mm | 1 | |
| Bottom panel - 250mm - ABS Black 3mm | 1 | |
| Acrylic Sheet Clear - 191.5x473x3 mm | 2 | |
| Acrylic Sheet Clear - 383x473x3 mm | 2 | |
| Acrylic Sheet Clear - 383x383x3 mm | 1 | |
| Back panel - 300mm - ABS Black 3mm | 1 | |
| Deck panel - 300mm - ABS Black 3mm | 1 | |
| Bottom panel - 300mm - ABS Black 3mm | 1 | |
| Acrylic Sheet Clear - 217.5x473x3 mm | 2 | |
| Acrylic Sheet Clear - 433x473x3 mm | 2 | |
| Acrylic Sheet Clear - 433x433x3 mm | 1 | |
| Back panel - 350mm - ABS Black 3mm | 1 | |
| Deck panel - 350mm - ABS Black 3mm | 1 | |
| Bottom panel - 350mm - ABS Black 3mm | 1 | |
| Acrylic Sheet Clear - 241.5x473x3 mm | 2 | |
| Acrylic Sheet Clear - 483x473x3 mm | 2 | |
| Acrylic Sheet Clear - 483x483x3 mm | 1 | |
Back, bottom and deck panels are CNC-cut from 3mm thick textured ABS sheets.
Images are provided for example only and may not exactly match the actual product.
Unused and fully intact kit in its original condition can be returned up to 30 days after the purchase.
