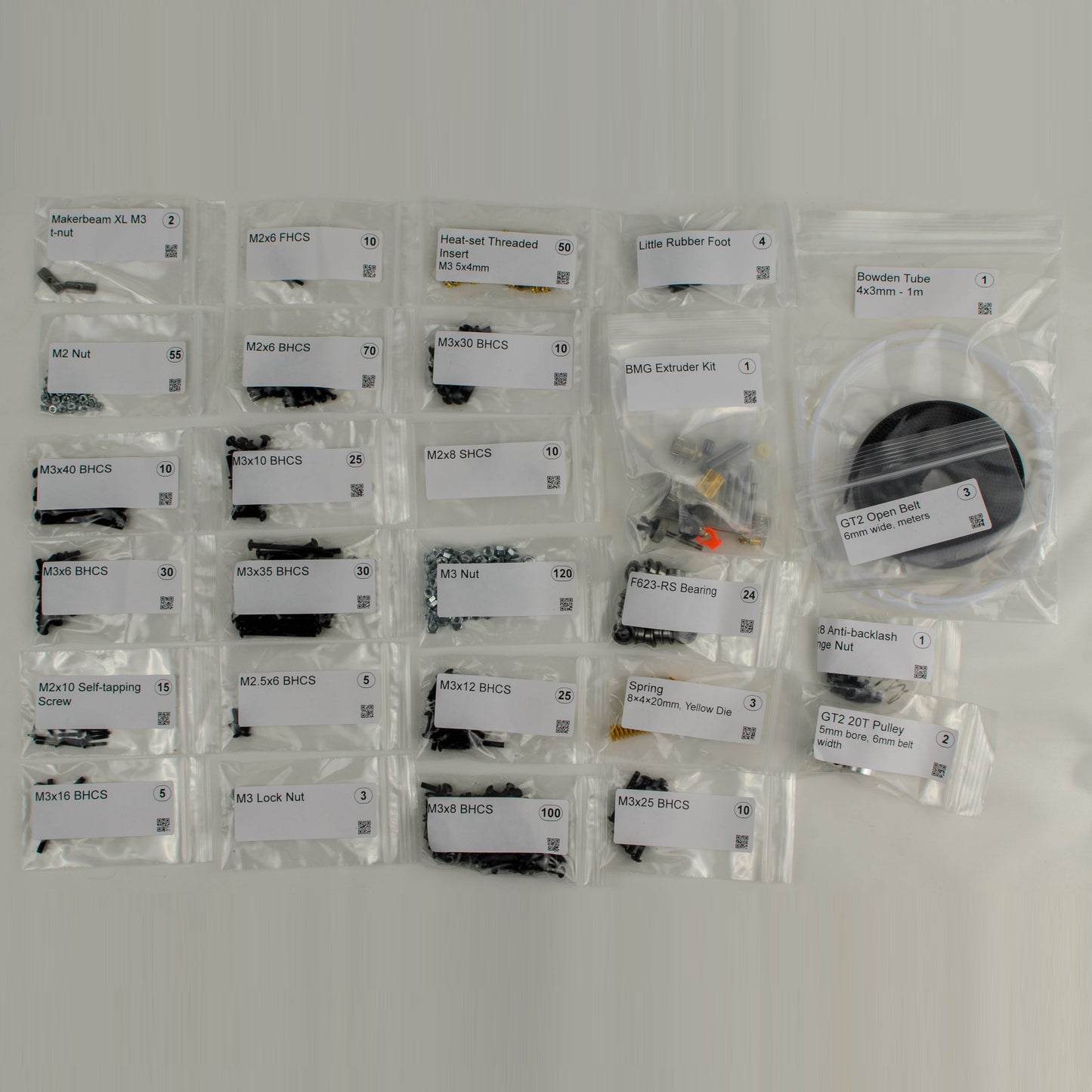

Mechanical parts kit for VORON0 V0.2 3D Printer
Included parts:
| Part description | Qty | Notes |
|---|---|---|
| Fasteners | ||
| 3x6x0.5mm Shim Washer | 35 | |
| M2 Hexnut | 55 | |
| M3 Hexnut | 140 | |
| M2x6 SHCS | 70 | |
| M2x6 FHCS | 10 | |
| M2x8 SHCS | 10 | |
| M3x6 BHCS | 40 | |
| M3x8 BHCS | 115 | |
| M3x8 FHCS | 5 | |
| M3x10 BHCS | 30 | |
| M3x12 BHCS | 25 | |
| M3x16 BHCS | 10 | |
| M3x25 BHCS | 10 | |
| M3x30 BHCS | 10 | |
| M3x35 BHCS | 30 | |
| M3x40 BHCS | 10 | |
| M2x10 Self-tapping Screw | 30 | |
| M3 Heat-set Threaded Insert (5x4mm) | 50 | |
| Makerbeam XL M3 t-nut | 2 | |
| Motion | ||
| F623-RS Bearing | 24 | |
| GT2 20T Pulley (5mm bore, 6mm wide) | 2 | |
| GT2 Open Belt, 6mm wide, meters | 3 | |
| T8x8 Anti-backlash Flange Nut | 1 | |
| Buildplate | ||
| Yellow Die Spring 8x4x20mm | 3 | |
| Misc. | ||
| Little Rubber Foot | 4 | |
| Bowden Tube 4x3mm - 1m | 1 | |
| 6mm x 3mm Round Neodymium Magnets | 8 | |
| Extruder | ||
| BMG Type Extruder Components Kit | 1 | Clone |
This is not a plug-and-pay kind of a kit. It is intended for a very DIY-inclined maker.
At our discretion, we will provide reasonable quantities of extra parts on demand, free of charge, for up to 60 days after the kit purchase. Do not hesitate to contact us if you lost a screw or broke a crimp connector.
We are doing our best to provide all parts in the quantities listed, but mistakes can happen. In case if some items are miscounted, please contact us within 60 days after the purchase and we’ll ship missing items to you free of charge.
Unused and fully intact kit in its original condition can be returned up to 30 days after the purchase.
