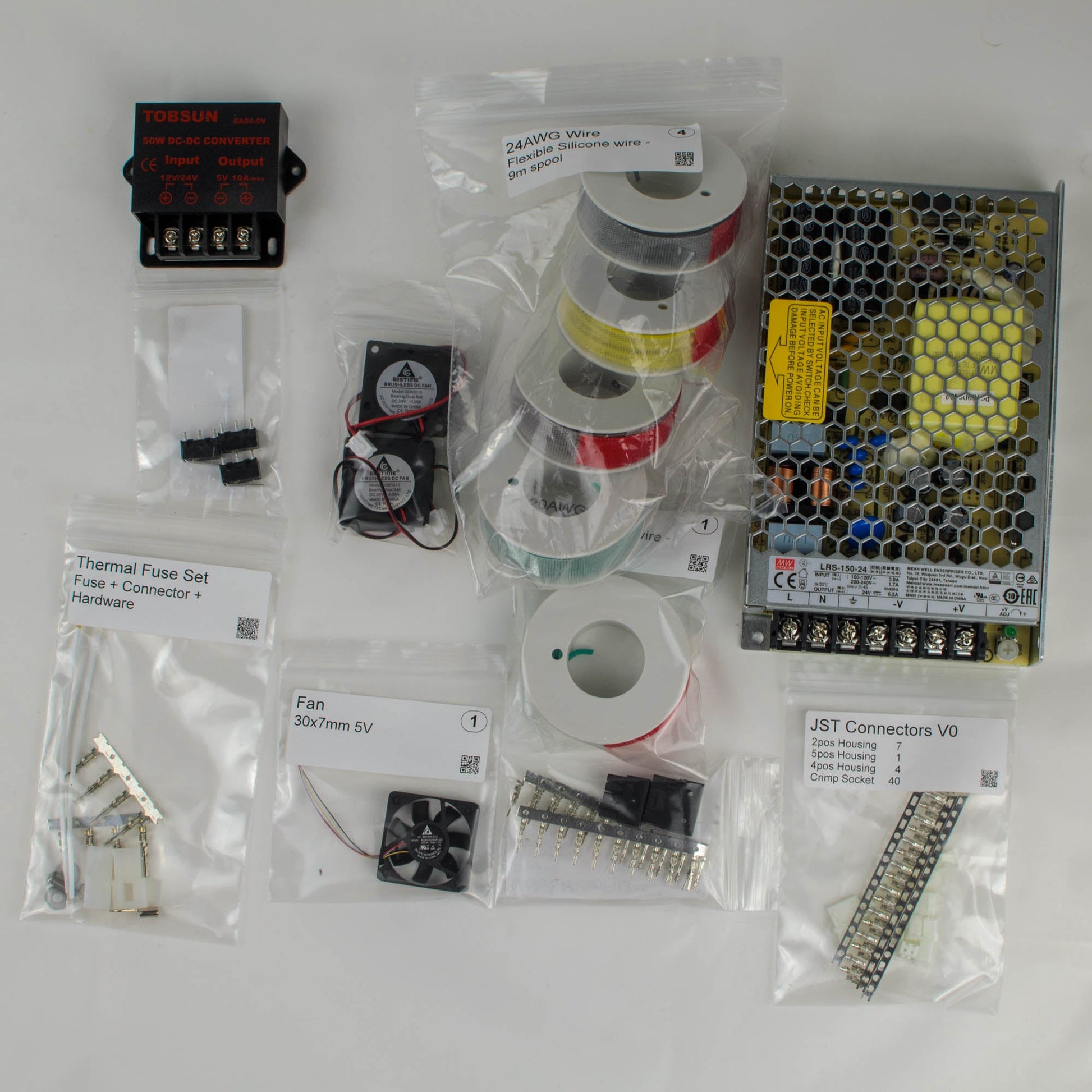

Core Electronic Parts Set for VORON0 v0.2 3D Printer
Core kit does not include Raspberry Pi, V0 display and Hotend. A choice of hotends is available separately.
Included parts:
| Part description | Qty | Notes |
|---|---|---|
| Electronics | ||
| Mean Well LRS-150-24 PSU | 1 | |
| DC/DC PSU/buck converter - 24V to 5V | 1 | |
| 30x10 blower fans 24V | 2 | |
| 30x10 axial fan 24V | 2 | |
| Omron D2F-5 MicroSwitch | 1 | without a lever for Z stop |
| C13 Power Cord | 1 | |
| IEC320 C14 inlet | 1 | |
| 8A Fuse 250V 5x20mm | 1 | |
| Cables | ||
| Insulated QuickConnect Crimp Receptacle 4.7mm | 4 | |
| Spade Crimp Terminal | 10 | |
| 24AWG Flexible Silicone wire - 9m spool | 4 | |
| 20AWG Flexible Silicone wire - 7m spool | 1 | |
| 18AWG Wire set V0 | 1 | White/Black/Green/Red (14ft total) |
| Thermal Fuse Set | 1 | Includes: 125°C 15A 250V Fuse, ring crimp terminal, connector, screws |
| JST XHP-2 Housing | 7 | |
| JST XHP-5 Housing | 1 | |
| JST XHP-4 Housing | 4 | |
| JST Crimp Pin SXH-001T-P0.6 | 40 | |
| MicroFit3 Male Pin | 15 | |
| MicroFit3 Connector Plug 10 Pos | 1 | |
| MicroFit3 Female Pin | 15 | |
| MicroFit3 Connector Receptacle 10 Pos | 1 | |
| Nylon Cable Ties 4" | 50 | |
This is not a plug-and-pay kind of a kit. It is intended for a very DIY-inclined maker.
At our discretion, we will provide reasonable quantities of extra parts on demand, free of charge, for up to 60 days after the kit purchase. Do not hesitate to contact us if you lost a screw or broke a crimp connector.
We are doing our best to provide all parts in the quantities listed, but mistakes can happen. In case if some items are miscounted, please contact us within 60 days after the purchase and we’ll ship missing items to you free of charge.
Unused and fully intact kit in its original condition can be returned up to 30 days after the purchase.
